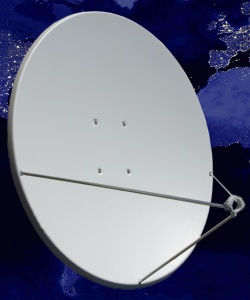

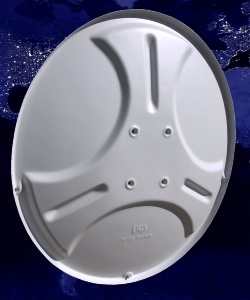

OFC-1100

Offset Dish

Effective Reflector Size mm 1100 x 1215
Operating Frequency GHz 10,7÷12,8
Gain (for frequency in GHz) 10.7 GHz
11,3 GHz
12,6 GHz
dBi
40,2
40,6
41,4
3dB Beamwidth (for frequency in GHz) 10.7 GHz
11,3 GHz
12,6 GHz
deg
1,8
1,7
1,6
Focal Length mm 600
Offset Angle deg 25,9
Feed Clamp Diameter mm 40
Antenna Weight no mount
with mount Az-El
kg
4,2
6,0
Operating Temperature oC -40 ÷ +50
Wind Loading Operational
Survival
km/h
80
200
Material
hardware - glass epoxy composite
screw elements - stainless steel
Standard Color light gray (RAL7047)
Package Size 1 ÷ 4 units in Cardboard Box: 1140 x 170 x 1250 mm
