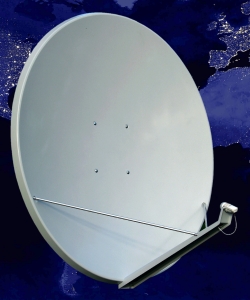

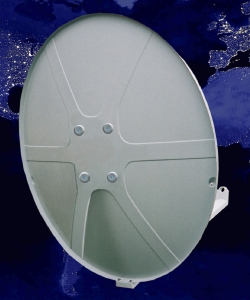

AS-1500 and AS-1500G

Offset Dish

Effective Reflector Size mm 1512x1610
Operating Frequency GHz 10,7÷12,8
Gain (for frequency in GHz) 10.7 GHz
11,3 GHz
12,6 GHz
dBi
42,7
43,2
44,1
3dB Beamwidth (for frequency in GHz) 10.7 GHz
11,3 GHz
12,6 GHz
deg
1,3
1,2
1,1
Focal Length mm 1100
Offset Angle deg 20,1
Feed Clamp Diameter mm 40
Antenna Weight
AS-1500/AS-1500 G		 no mount
with mount Az-El
kg
13,0/16,0
18,5/21,5
Operating Temperature oC -40 ÷ +50
Wind Loading Operational
Survival
km/h
80
200
Power/Voltage electric anti-icing system
(for AS-1500 G only)
W
V
320
AC 230
Materiał
hardware - glass epoxy composite
screw elements - stainless steel
Standard Color light gray (RAL7047)
Package Size Cardboard Box: 1680 x 180 x 1595 mm
Compatible Accessories:
