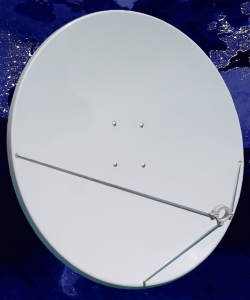

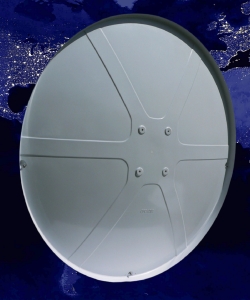

OFC-1200

Offset Dish

Effective Reflector Size mm 1190x1298
Operating Frequency GHz 10,7÷12,8
Gain (for frequency in GHz) 10.7 GHz
11,3 GHz
12,6 GHz
dBi
40,9
41,1
42,1
3dB Beamwidth (for frequency in GHz) 10.7 GHz
11,3 GHz
12,6 GHz
deg
1,6
1,5
1,4
Focal Length mm 700
Offset Angle deg 23,5
Feed Clamp Diameter mm 40
Antenna Weight  OFC-1200 no mount
with mount Az-El
kg
6,2
8,0
Operating Temperature oC -40 ÷ +50
Wind Loading Operational
Survival
km/h
80
200
Material
hardware - glass epoxy composite
screw elements - stainless steel
Standard Color light gray (RAL7047)
Package Size 1 ÷ 4 units in Cardboard Box: 1340x170x1240 mm
Compatible Accessories:
